SKU:CST_WC01

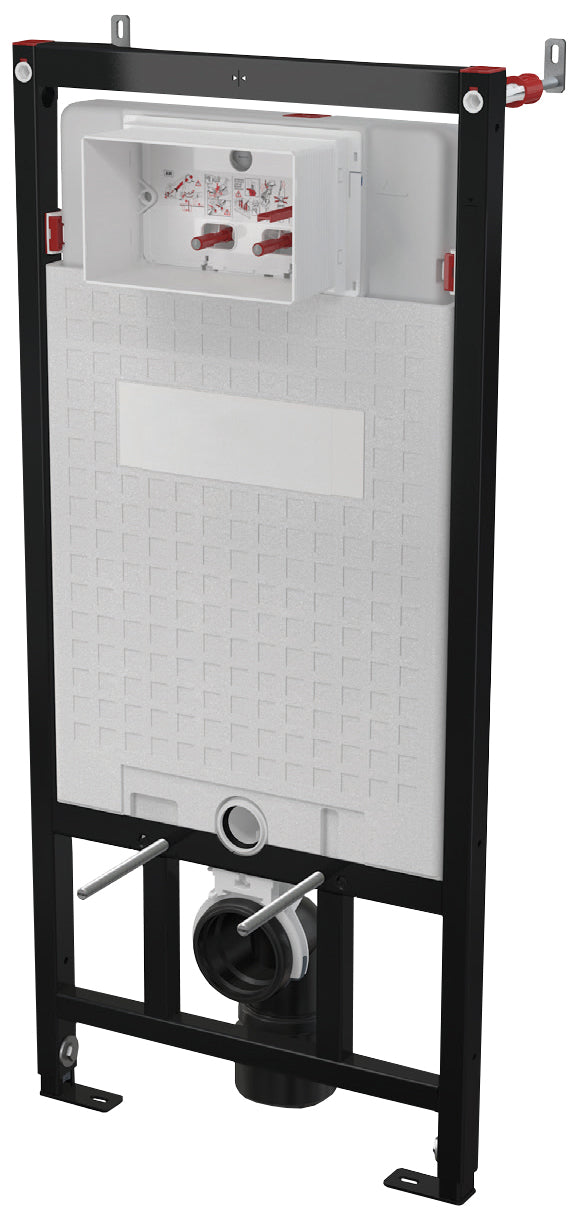

Concealed frame, for wall-mounted toilet bowls
€169,19
€169,19
/
Sale
Out of Stock
Tax included.
Shipping calculated at checkout.
In stock (1000 units), ready to be shipped
Couldn't load pickup availability
- 100% Safe Payment
- Safe Dispatch
- Local Pickup
Description
The concealed frame is intended for hanging toilet bowls.- Dedicated cleaning agent, safe for cleaned surfaces: The use of dedicated agents means that the surfaces do not deteriorate and remain smooth for long, facilitating another cleaning. A specially selected composition removes the most common dirt extremely effectively. On the other hand, the preparations are delicate for a given type of surface (metal, granite, ceramics and others), without entering into chemical reactions with them. The preparations are biodegradable and thus safe for the environment. With Deante cleaning products, keeping things in order will be very easy!
- Innovative angular mounting to the tank - easier and faster installation: Innovative tank with new one-piece angle valve from Schell.
- More convenient installation of the toilet bowl: For faster installation, the threaded rods now have a groove.
- Fixing holes - universal installation options: Thanks to the openings in the frames, the mounting system can be easily attached to plasterboard structures, living quarters and wooden buildings.
- New hinges for tanks with two-component insulation: Noise protection. Thanks to the two-component material, the transmission of vibrations between the tank and the frame is isolated. Convenient installation. Tilting the tank forward will facilitate the assembly of movable elements in structures made of cardboard plasters.
- New reliable filling valve - quiet, fast and extremely durable: Specially developed for the pressure range 0.05 - 1.6 MPa (0.5 - 16 bar). Extremely resistant to water contamination.
- Easy Lock wall mount kit - quicker and easier installation, accurate settings: The new design solution allows the door frame to be easily attached to the wall in half the time. Possibility of additional adjustment of the optimal position from the front of the frame using an allen wrench.
- Easy installation in lightweight construction or in front of a load-bearing wall
- Dual button, allowing adjustment of the amount of water used for flushing
- Frame with class I loudness
Shipping & Returns
Find detailed information on Shipping & Returns page.
Product Details
Package depth
:
1200 mm
Package height
:
150 mm
Package weight
:
13450 g
Package width
:
530 mm
Warranty years
:
10
All Variants
Connection valve g1 2
:
Yes
Depth mm
:
125
Designated for installation in front of the load bearing wall
:
Yes
Designated for light casing
:
Yes
Double flushing i
:
3/6
Frame height adjustment mm
:
200.0
Height mm
:
1176
Mounting bolts spacing 180 mm and 230 mm
:
Yes
Silent flushing and filling
:
Yes
Tank capacity l
:
9
Width mm
:
510
